Feeder Schematic Views

Feeder schematic views allow utility managers to determine the circuit to which a given piece of electrical equipment belongs (its power sources), and which of its electrical phases are energized on the primary side using an easy to understand schematic or logical layout.

Feeder Schematic Views Key Features

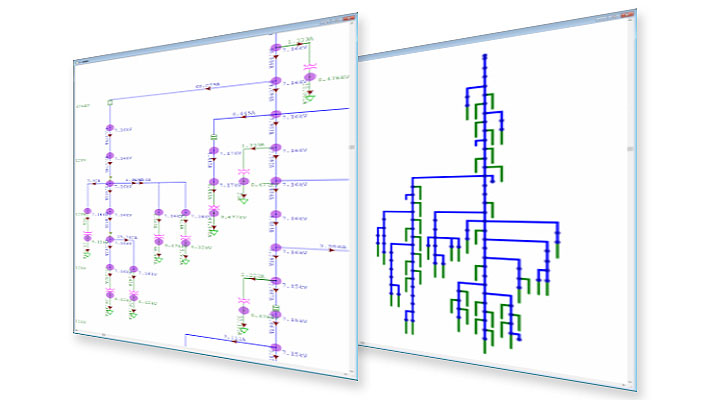

Generate a logical feeder layout for individual or groups of feeders in single or multiple views
Locate all features or tie devices associated with a feeder
Select elements belonging to a particular feeder or group
Show simulation results on geospatial and feeder views
Synchronized with geospatial electrical diagram, substation and equivalent circuit views
